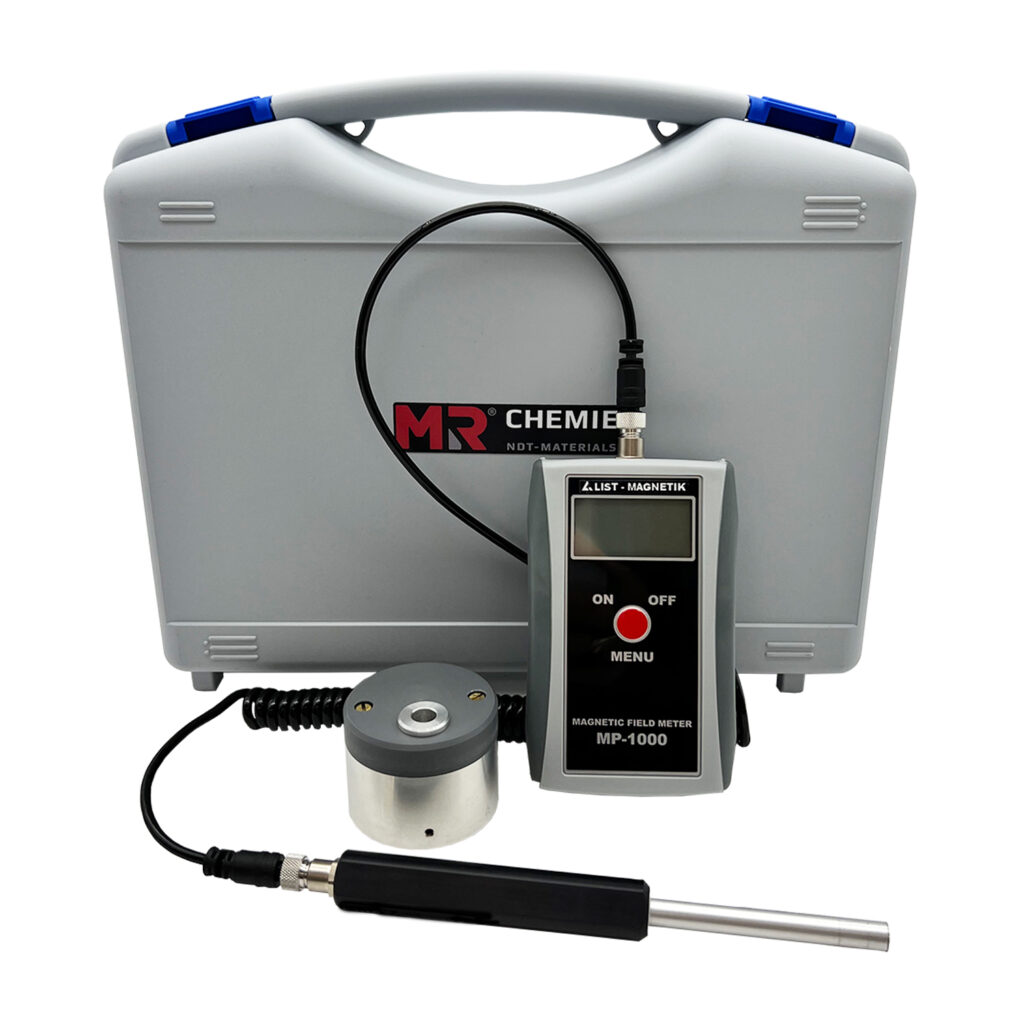

Magnetic field meter MP-1000

Description:

Item number: 396

  • With the handy MP-1000 magnetic field meter with externally connectable tangential and axial field probes, you can easily perform precise measurements. The universal device is suitable for strength measurements of DC fields, AC fields (True RMS) and pulse fields.
  • With the easy one-button operation, magnetic field strength can be measured from the weak earth magnetic field up to strong field s of 20,000 A/cm, switchable in Gauss/Oersted.
  • A separate built-in micro controller in the MP-1000’s measuring probes digitizes and linearizes the analogue measurement signals of the hall sensor into the probe. This gives an extremely trouble-free and precise measurement, especially at high magnetic field strengths.
  • The probe cable is pluggable at both ends, at the display unit and the probe, which is particularly service-friendly, as the cable can simply be replaced if it becomes faulty.
  • Applications of the MP-1000 are the test for residual magnetism, the measurement of magnetic fields of all kinds, as well as the localization of stray fields for crack detection.

More information

Contents of delivery:

MP-1000 without probe, with probe cable and case, including calibration certificate

The measuring probe needs to be ordered separately:

  • Axial probe P-A2 = Art.no. 184
  • Tangential probes P-T2 = Art.no. 348

Recommended Optionals:

  • Precision Calibration Standard 180 A/cm = Art. no. 1869



Technical data

Measurement Units: A/cm – Gauss(Oe) switchable
(1 A/cm = 1.256 Gauss = 1.256 Oersted)
Applicable measuring probes: axial probes P-A2 and P-W2, tangential probes P-T2 and P-Z2
Measuring range DC: 0-20.000 A/cm
Measuring range AC: 20-20.000 A/cm
Accuracy: in the homogeneous field ± 2%
Resolution: 0–100 A/cm: 0,1 A/cm
>= 100 A/cm: 1 A/cm
>= 1.000 A/cm: 10 A/cm
>= 10.000 A/cm: 100 A/cm
AC Frequency Range: 10 Hz – 5 kHz
Peak Hold: with impulse duration >= 0.1 msec
Display: LCD display 3½ digit
Power Supply: 2x 1.5 V AA Mignon
Operating time: approx. 35 h
Dimensions: 105 x 65 x 26 mm
Weight: 137 g with batteries
Content of delivery: Sonde cable, case and calibration certificate included
